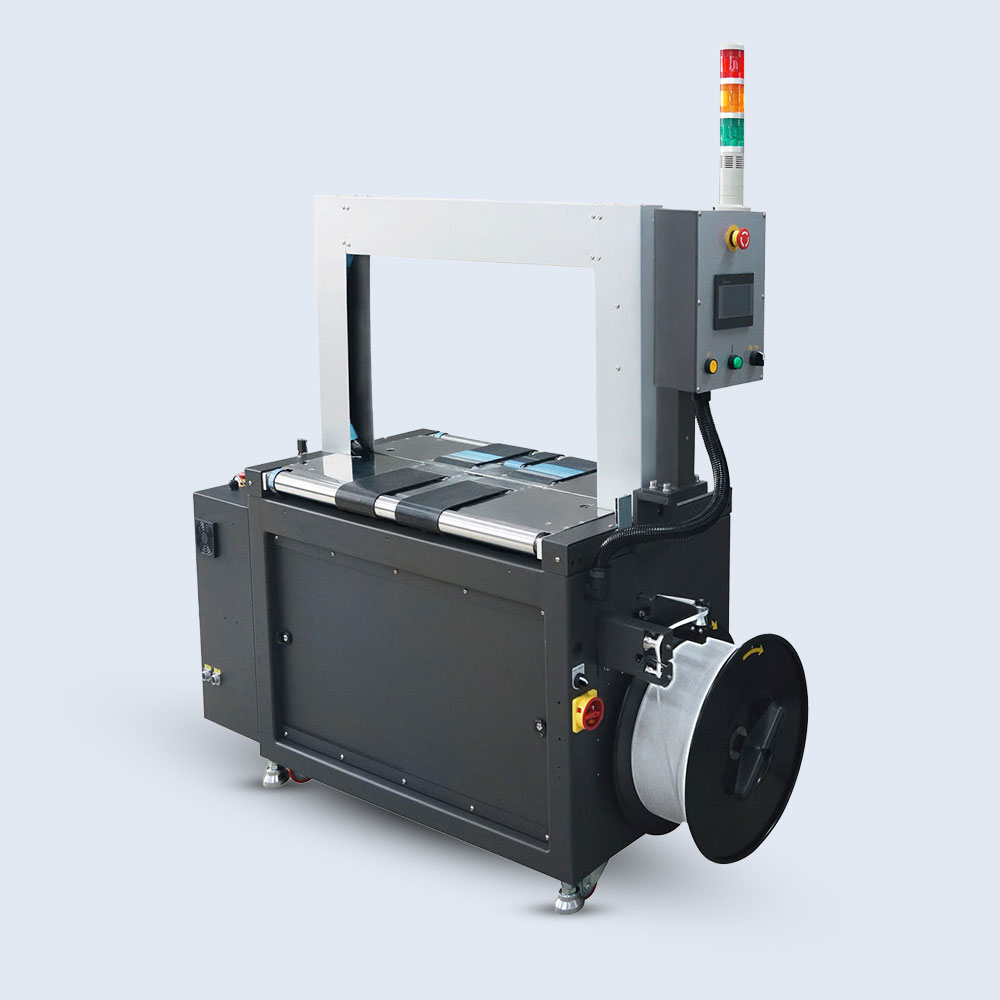

188B
The PSE 188B offers the versatility of different strap widths (5-15mm), a wide tension range and high speed strap cycle with efficient and quiet Servo motor.
Multiple functions are standard on machine.
Features
- Motorised belt driven table top
- Looping ejector
- Short feeding sensor
- Coil and eject system
- Waist auto loading system
- Conveyor speed adjustable
- Upstream and downstream interlock
- Various width straps 5,6,9,12,15mm
- PLC control with HMI touch screen panel
Optional
- Stainless steel
- Various arch sizes
Specifications
| Motor | Servo |
| Speed (straps/min) | 60+ |
| Strap Width | 5,6,9,12,15mm |
| Tension Range (5,6mm) | 5-70kgs |
| Standard Arch (WxH) | 60+ |
| Sealing Method | Heating element |
| Table Height | 805mm |
| Power Consumption | 1.2kW |
| Power Supply | 240V 50/60Hz, 440V 50.60Hz 3PH |
| Layout Dimension (LxWxH) | 1565x580x1430mm |
