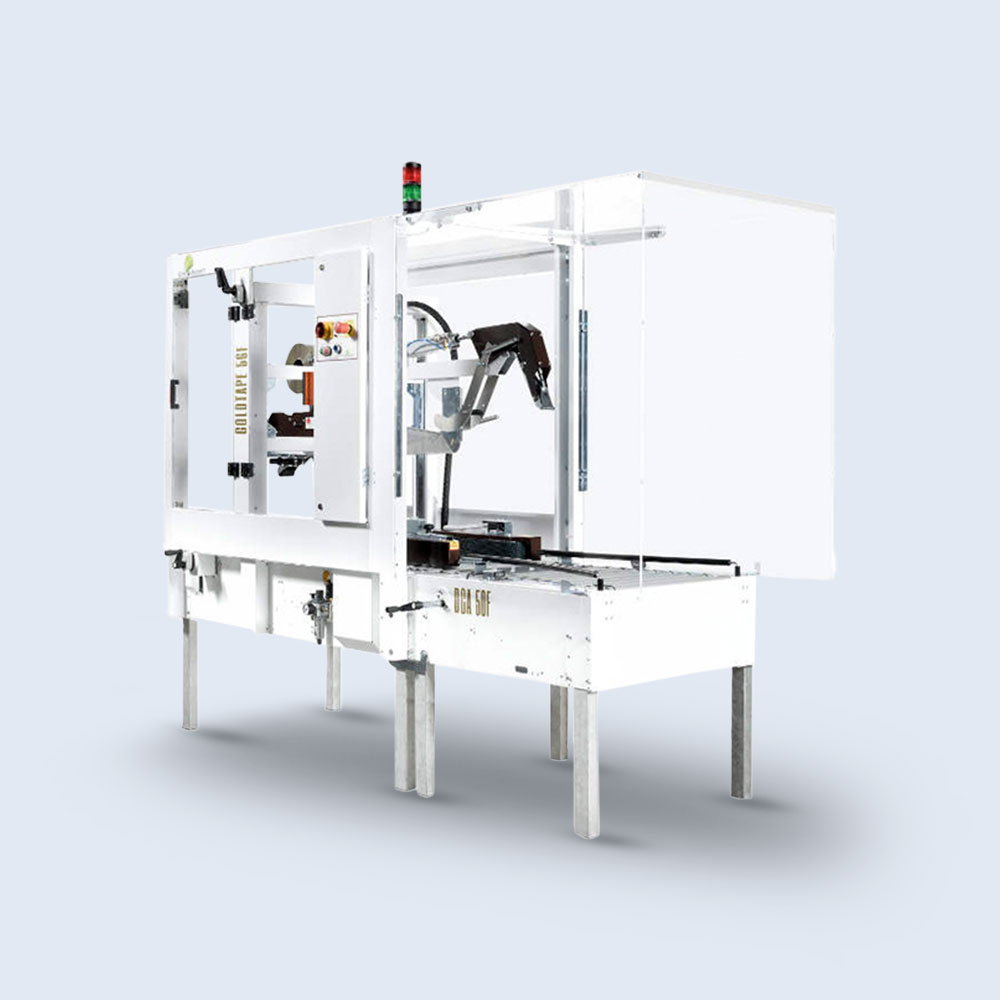

Goldtape 608FL
Automatic manually adjustable carton sealers for the automatic folding of the top flaps and the simultaneous tape sealing of the top and bottom flaps of boxes.
Key Features
- The boxes are fed by side belts, driven by a single motor
- 4 side pressure rollers to keep the box top flaps closed
- Adjustments made by unique counters
- Safety protections with unique coding RFID
- Control panels and switches ergonomically located
- Wide see-through windows
Technical Data
- Electrical power supply: three-phase 400V – 50 Hz
- Installed power: 0,25 kW
- Air consumption: 2,5 nl per production cycle at 6 bar
- Electrical protection level: IP 54
- Service temperature: from + 5° C to + 35° C
- Productivity. 1300/1400 boxes/h (GT56FL) – 1300 boxes/h (GT608FL)
- Box transfer speed: 24 mt/min
